Features

BAM Automat combines a texture-folder material builder with MaterialManager utilities and viewport overlays. The addon is designed for production scenes where materials need to be created, updated, inspected, assigned, cleaned, and prepared for reuse.

AutoMat Texture Pipeline

AutoMat scans a texture folder and builds material candidates from matching BaseColor files. The active preset defines which suffixes count as BaseColor and which additional texture maps should be connected to the shader.

Core workflow controls:

• Texture Folder selects the source folder.
• Subfolders Scan searches inside nested folders.
• Relative Paths stores texture paths in a project-portable form when possible.
• Force Refresh rescans the folder.
• Create and update Materials builds new materials or updates existing ones.

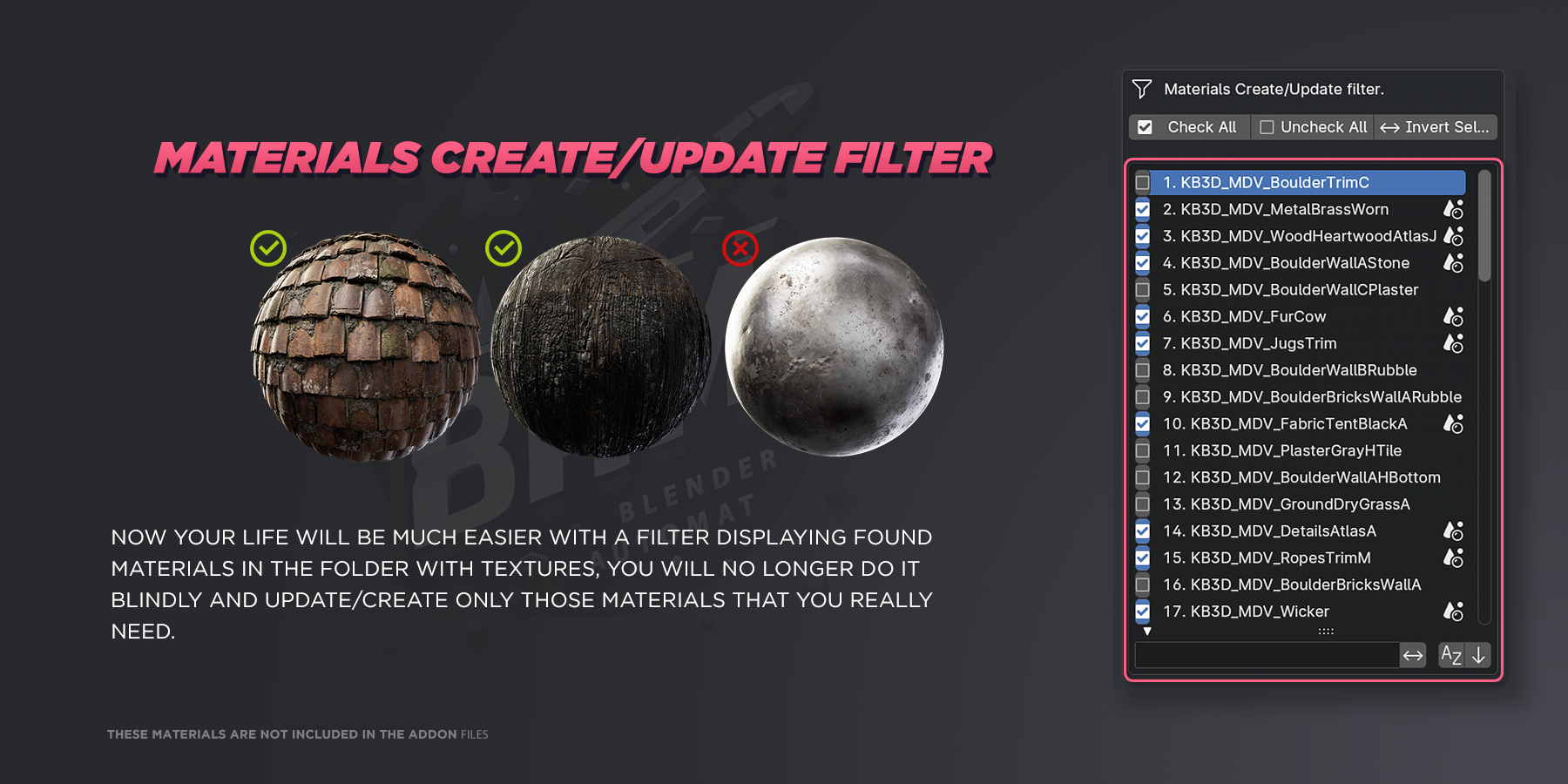

• Materials Create/Update filter lets you process only selected material candidates.

The create/update filter keeps large texture folders manageable by letting you process only the detected materials you actually need.

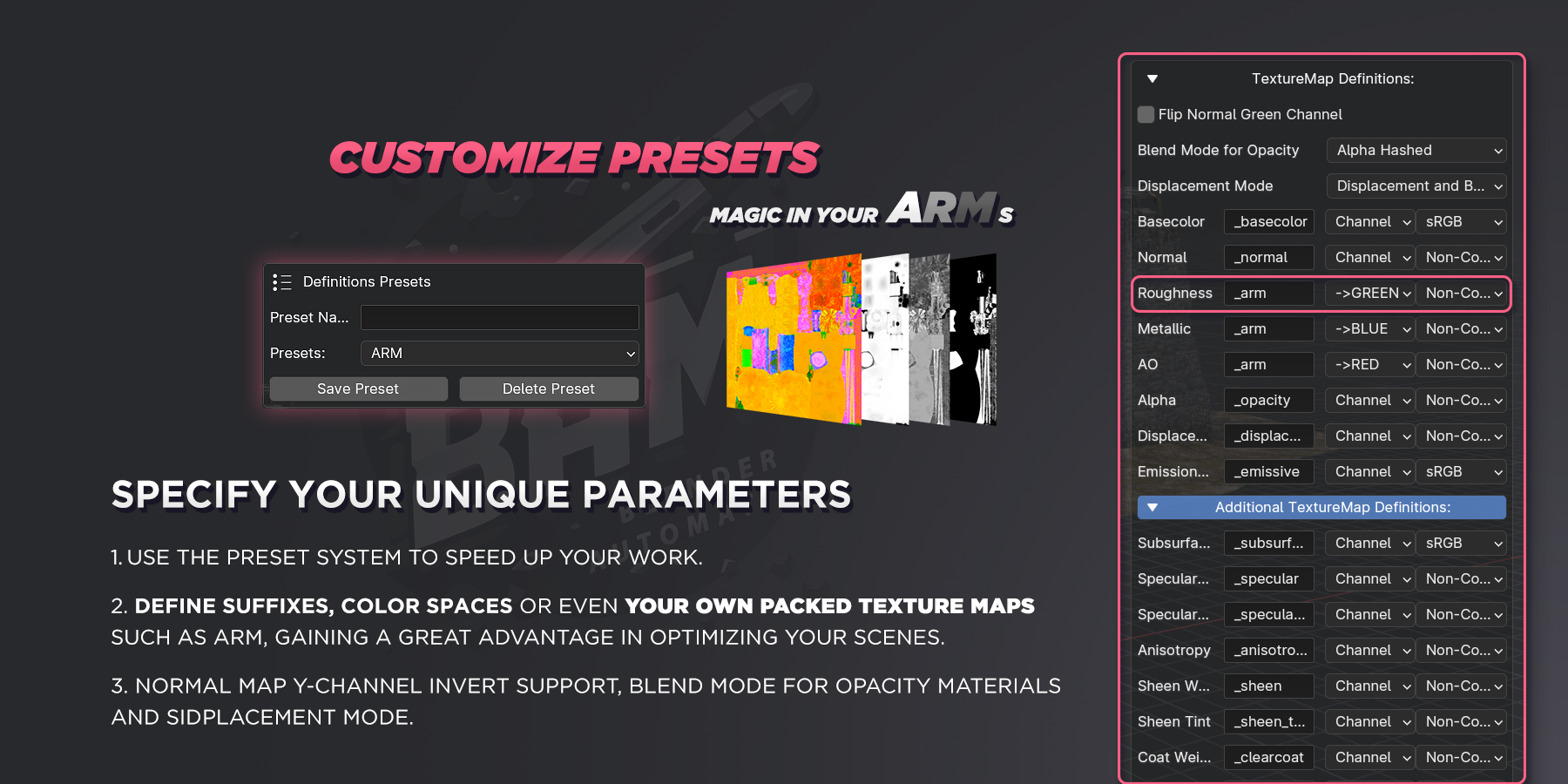

Presets and Texture Definitions

Definitions Presets store suffix, channel, colorspace, and default-value behavior for texture maps.

Presets define suffixes, channel extraction, colorspaces, packed maps, and additional texture-map behavior.

The bundled presets cover:

• Default texture sets, with suffixes such as _basecolor, _normal, _roughness, _metallic, _opacity, _displacement, _emissive, and _ao.
• ARM packed textures, where AO, Roughness, and Metallic share one image and are read from separate channels.

Each map definition can control:

• suffixes, including multiple accepted suffixes for one map type
• RGB, R, G, B, or Alpha channel selection
• Blender image colorspace
• optional value fallback instead of a texture link

Shader Setup

AutoMat creates or updates Blender materials around Principled BSDF workflows. It handles the common PBR map types and connects them to Blender socket names that differ between Blender versions.

Supported public controls include:

• Base Color, Normal, Roughness, Metallic, AO, Opacity, Displacement, and Emission definitions.
• Additional definitions for Subsurface, Specular IOR, Specular Tint, Anisotropic, Sheen, Coat, IOR, and Transmission.
• normal green-channel flip for OpenGL or DirectX style normal maps
• roughness inversion
• blend mode selection for alpha workflows
• displacement mode, scale, and midlevel defaults
• automatic IOR defaults based on material-name keywords, with a general default of 1.45
• scene-wide colorspace matching through Scene ColorSpace Match

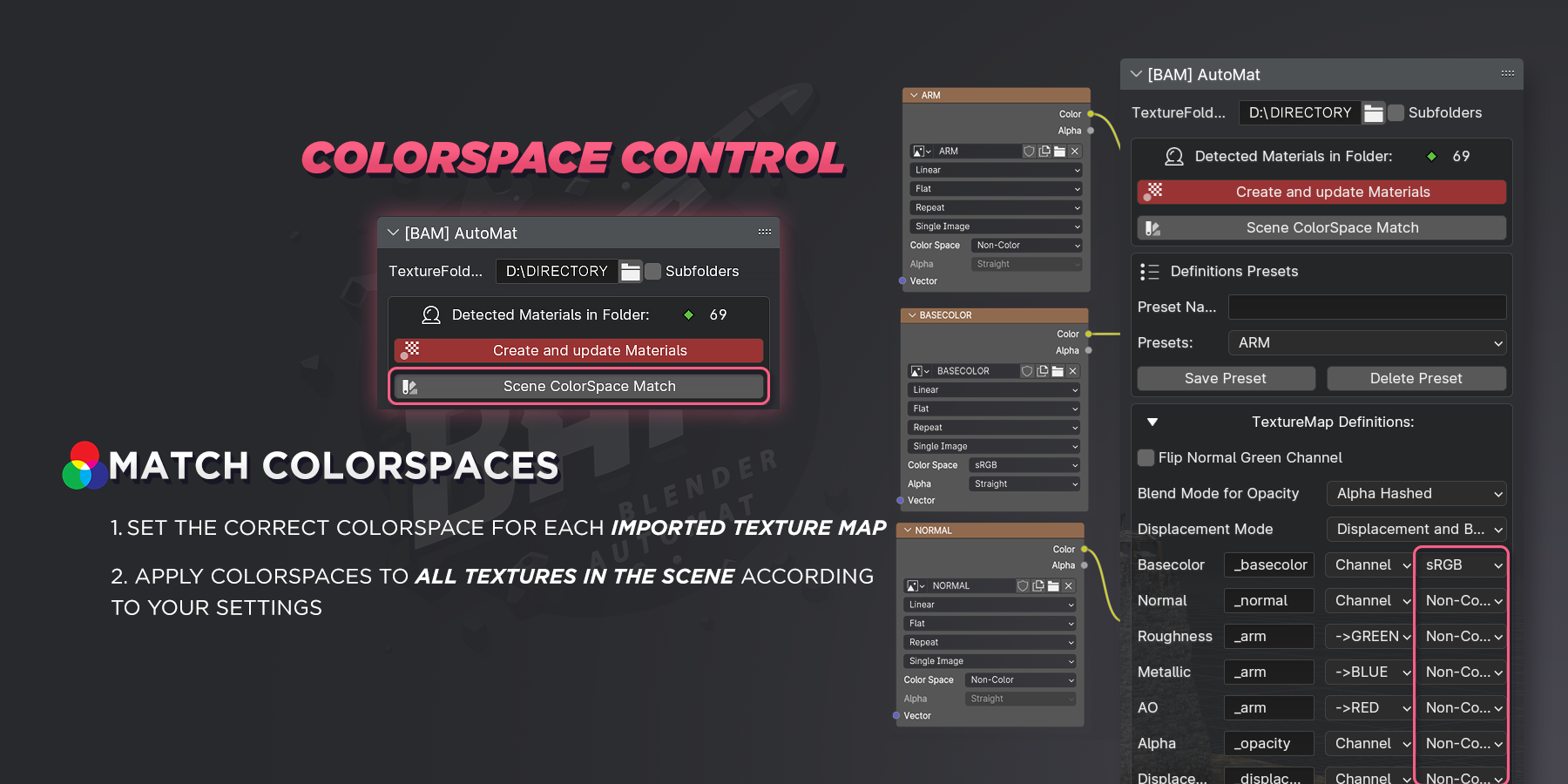

Use colorspace definitions and Scene ColorSpace Match to align imported texture maps with your preset settings.

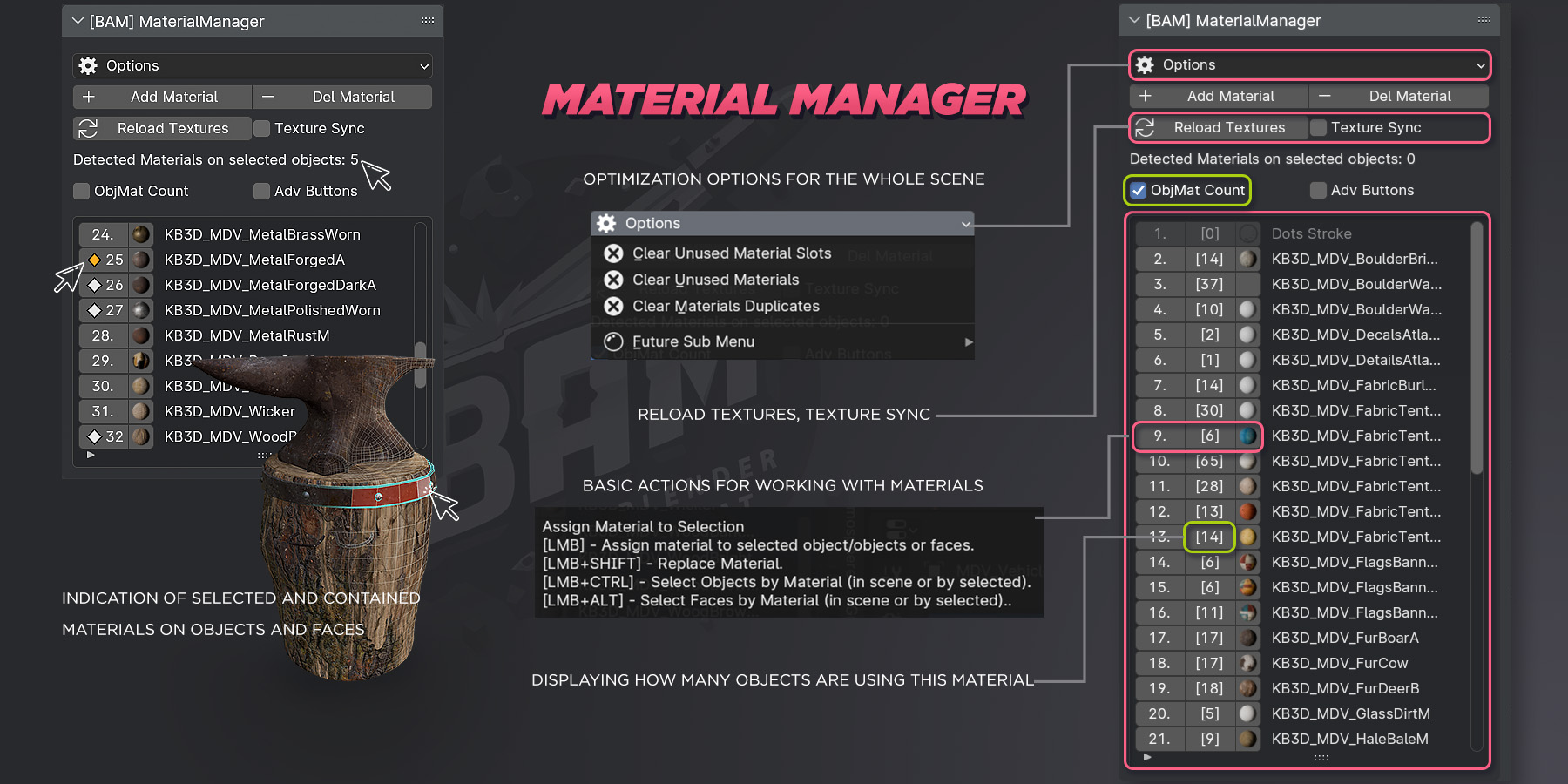

MaterialManager

MaterialManager is the scene-material control surface in BAM. It keeps material inspection and common material actions close to the AutoMat workflow.

MaterialManager groups reload, sync, assignment, selection, object-count, cleanup, and optimization controls in one panel.

Common actions:

• add, delete, and duplicate materials
• assign materials to selected objects or selected faces
• replace one material with another
• select objects by material
• select faces by material
• toggle fake user
• open a material in the Shader Editor
• inspect recent materials and materials on selected objects
• show material previews

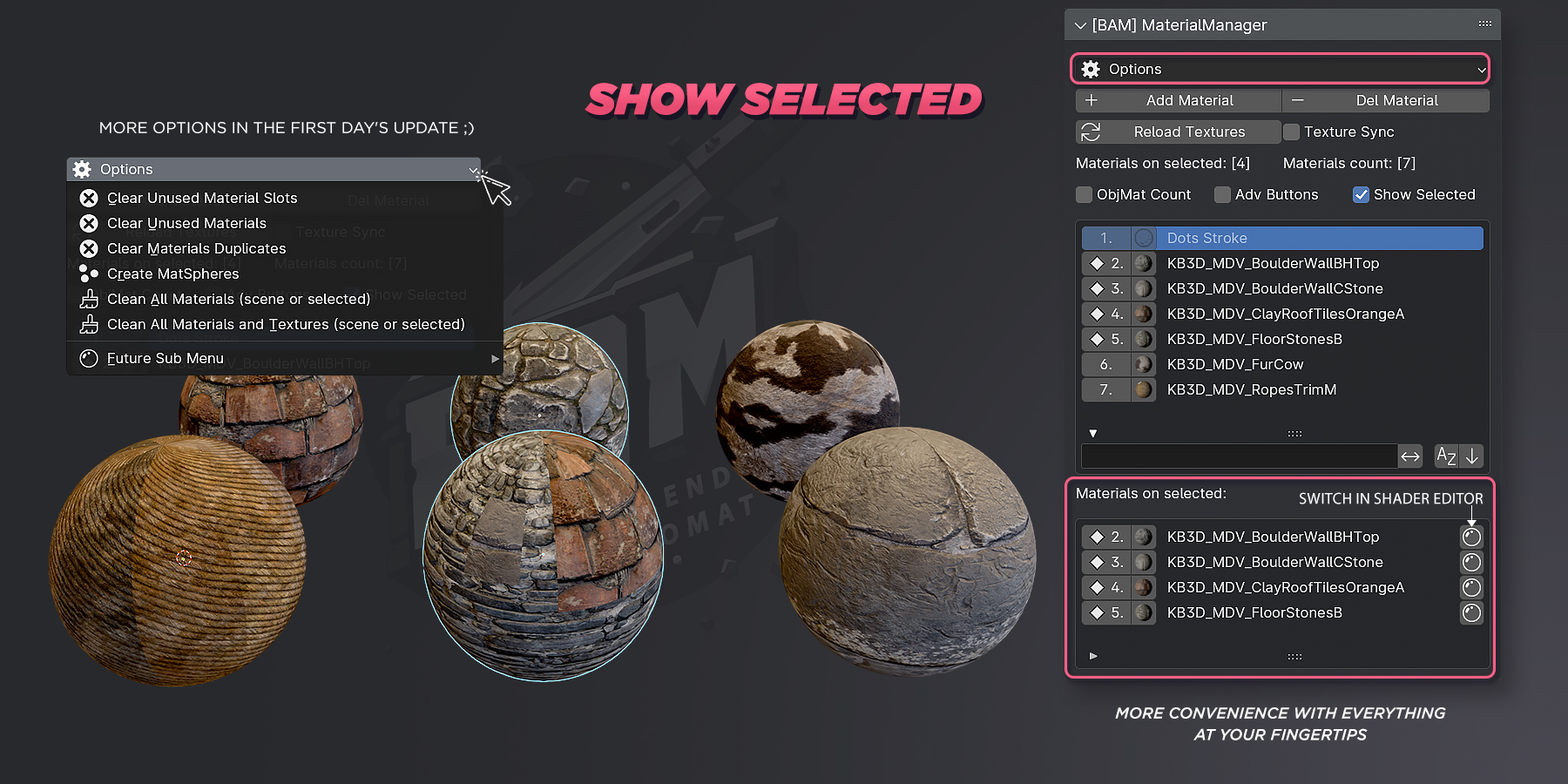

Selected-material views keep object materials and quick shader-editor access close to the main material list.

Cleanup and Texture Tools

The Utilities menu groups maintenance tools for larger scenes:

• clear unused material slots for the scene or selected objects
• clear unused materials
• replace and delete duplicated materials based on numeric suffixes
• clean material node trees
• clean material nodes plus texture data
• create a grid of material spheres for inspection
• reload textures for the scene or selected objects
• enable texture sync for automatic refresh checks

Texture sync uses a configurable interval from BAM preferences. Increase the interval if automatic checks feel too frequent in heavy scenes.

Material Overlays

BAM includes two viewport-oriented material inspection tools.

Materials Overlay opens a thumbnail-based material browser with filtering, sorting, recent materials, selected-only mode, context actions, and manual thumbnail refresh tools.

MatName Overlay shows the material name under the cursor in the 3D View. It is useful when checking dense scenes or models with many assigned material slots.

MatsAsset Beta

MatsAsset [BETA] is a MaterialManager helper for asset-library workflows. It lets you select scene materials, choose a library file, optionally override existing entries, optionally copy textures, and add selected materials to a library file as assets with previews.

Use this as a controlled export helper, not as a replacement for reviewing your Blender asset library after export.

Preferences

BAM preferences include:

• panel category, space type, and region type for AutoMat and MaterialManager
• switch-to-Cycles behavior
• texture sync interval
• Material Overlay style controls
• overlay preview generation settings
• UI style reset and save actions
